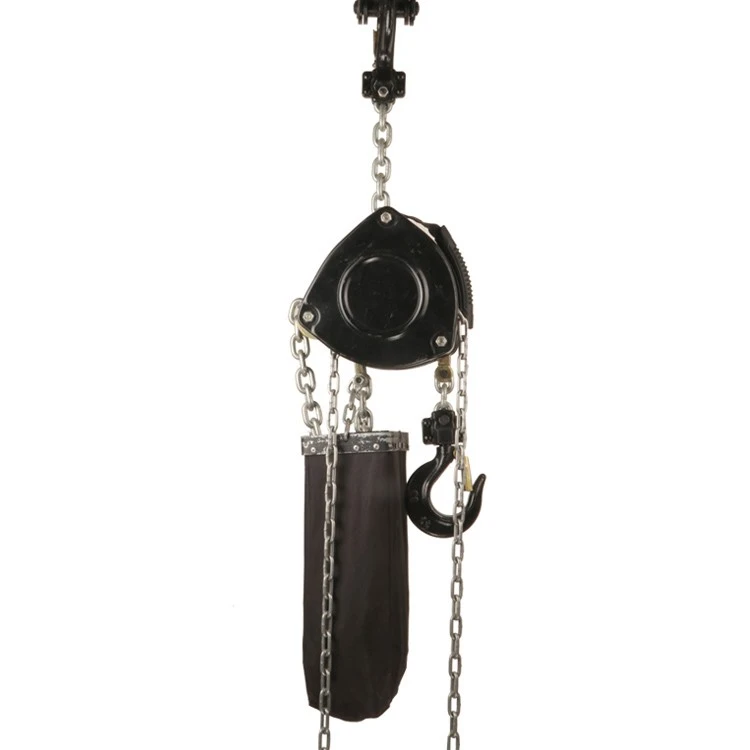

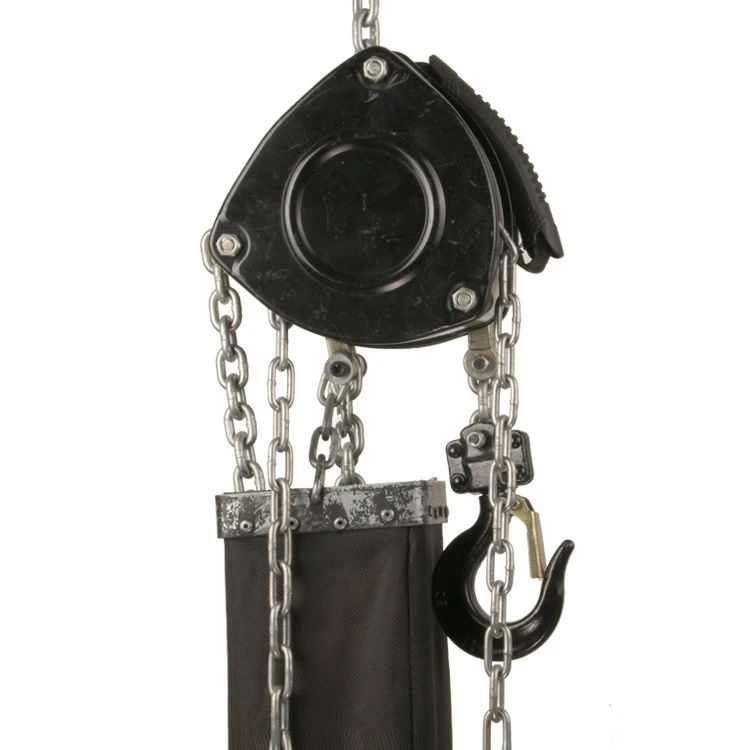

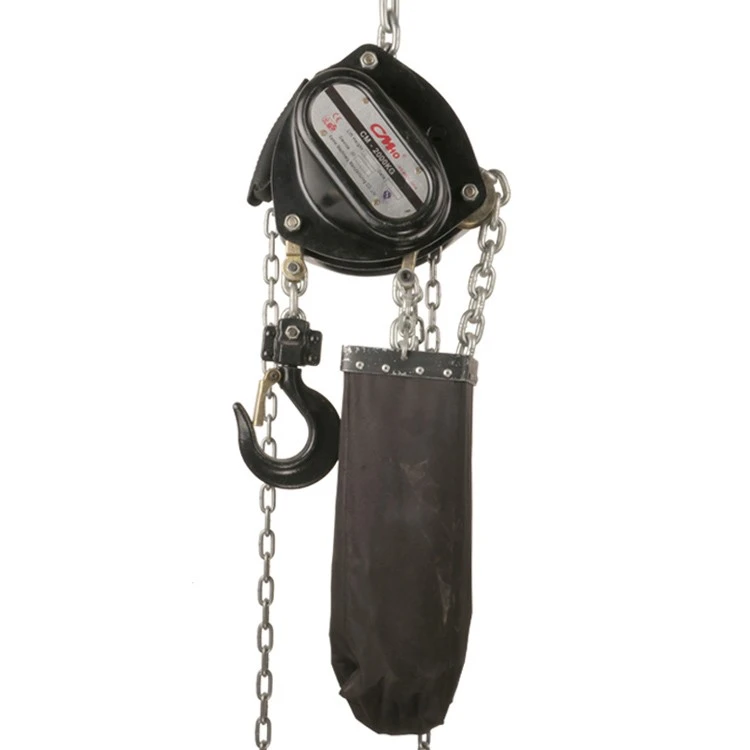

Portable Stage Chain Hoist

A portable stage chain hoist is a miniaturized, movable manual lifting device specially designed for stage scenarios. It uses a chain as the load-bearing and transmission carrier, and achieves labor-saving effects through a built-in gear reduction system and lever structure. It is mainly used for short-distance lifting, suspension or displacement operations of stage equipment (such as small lighting trusses, light audio equipment, props, etc.).

Send Inquiry

The reason why portable stage chain hoists can achieve labor-saving effects lies in their ingenious mechanical transmission structure design, which mainly relies on two classic mechanical principles to realize the efficient conversion of human power:

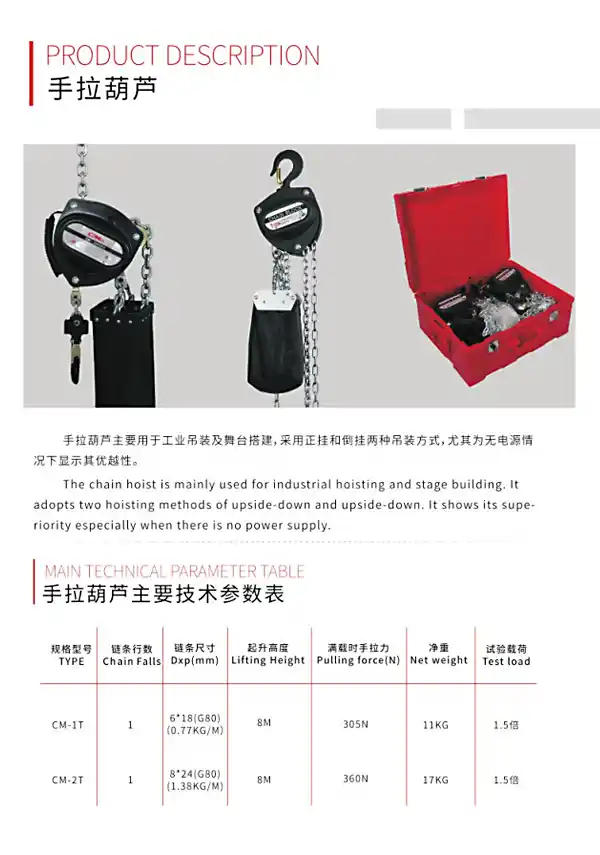

stage hand hoist

Principle of gear reduction transmission

The portable stage chain hoist contains multiple sets of intermeshing gears (such as driving gears and driven gears), and there is a fixed transmission ratio between the gears. When the operator pulls the chain, the driving gear drives the driven gear to rotate. Through the meshing mode of "small gear driving large gear", the small pulling force exerted by human power is converted into a larger torque. For example, if the transmission ratio is 1:10, it means that when the operator exerts a pulling force of 100N, a lifting force of 1000N can be output after gear transmission, thus greatly reducing the human power required to pull heavy objects.

Application of lever principle

The chain pulling end and the lifting end of the portable stage chain hoist form a mechanical structure similar to a lever, and the sprocket around which the chain passes is equivalent to the fulcrum of the lever. By optimizing the sprocket diameter and chain winding mode, the length of the "force arm" is extended, so that the operator can generate a larger lifting torque under the same pulling force. At the same time, some hoists are equipped with handles or rockers, which further utilize the lever principle to make the hand force more in line with ergonomics and reduce fatigue. In addition, the gear set of high-quality hoists adopts high-precision processing and lubrication treatment to reduce mechanical friction loss, ensuring that more human power is effectively converted into lifting force instead of being consumed in component friction. This design of "amplifying human power with mechanical structure" enables stage hand chain hoists to easily cope with the lifting needs of stage equipment without power assistance.
