Stage Hoist

The Stage Hoist manufacture!





Tianjin Kemei Machinery Manufacturing Co., Ltd There is a modern production-oriented enterprise integrating independent research and development, manufacturing and sales.




First 1234567 Last


Why choose us





Product Application

They are widely use in Steel industry,Power station,Energy recycling,Vehicle Manufacturing,General Manufacturing,Paper making,Food industry,Petrochemical,Aerocraft,shipbuilding.etc



Sales Market

Cranes for sale and crane delivery services provided aroud worldWe have exported our cranes and hoists to more than countries.



Certificates

We're ISO9001, ISO14001, and ISO45001 certified, and our products meet CE, EAC, and cCSAus & AWS standards.





SWL acc DGUV V54 (D8+)

500kg/

1000Kg/2000kg

Direct Control

220-440V, 3ph, 50/60Hz

Cable

1m Cable with CEE-16/4

Chain

EN818-7

Dynamic safety factor for chain

Min 101

Grade of steel

100

Chain surface

Galvanized

Chain Guide

Precise chain guide with

5-pocket chain wheel

Clutch

Patented friction clutch

For overload protection

Full load noise level(db)

≤60

Brake

2 DC brake

Load hook

1-fall / turnable

Suspension

Suspension loop

Mounting position

Climbing & stationary

Plastic handles

Without

Protection level

IP 66

Mechanism class /FEMS 9.511

1Arn/ 25% ED

Color

Black, RAL 9005 matt

DC Brake Size

10

DC Brake Operating Voltage

180VDC

DC Brake Rated Torque

16Nm

DC Brake gaps

0.2mm





Stage Hoist Features

1. Efficient,lightweight motors,the first non-asbestos brake system,low energy consumption.
2. Stamping steel shell,lightweight and sturdy.
3. High-strength safety hook,to withstand the impact of accidental overload fracture does not occur only gradually deformed.
4. Lightweight,attractive and durable molded chain bad
5. Limit switch:limit switch hanging under the hanging device,the motor automatically stops to prevent the chain beyond,to ensure safety.
6. The heat-treated steel plate shaped chain guide.
7. Among single operation,easy maintenance.
8. Pros and cons of two-way and all-weather design.
9. Spiral with adjustable limit switches,higher reliability.
10. Chain galvanized,rust
11.The grease in the gear box installed to prevent the droplets penetrate into the arena
12. Hoist motor is sealed within a cylindrical shell of aluminum rims,permanent motor insurance
13. Suitable to be connected with a variety of controllers and circuit distributor
14. The dual brake system to ensure safe operation.

Theatrical Chain Hoist




Use scenarios of stage hoists and stage winches

01/

Lifting and lowering of stage scenery:
In performances or theaters, stage hoists and stage winches are often used to lift and lower scenery, stage props, background boards, etc. By precisely controlling the equipment, the stage scenery can be adjusted quickly and safely to enhance the performance effect.

02/

Lifting and lowering of lighting equipment:
The installation, adjustment, and movement of lighting equipment need to be carried out at high altitudes. Stage hoists or stage winches can be used to hoist and lift stage lighting systems to ensure the stability and safety of lighting equipment.

03/

Lifting of audio equipment:
The installation and adjustment of audio equipment (such as speakers, microphone systems, etc.) usually requires the use of lifting equipment. Stage hoists and stage winches can accurately lift and lower audio equipment to the specified position to ensure the best performance of the performance sound effect.

04/

Movement of stage props and actor props:
In some plays, stage hoists and winches are used to quickly move props and props required by actors to ensure timely replacement and position adjustment of props during the performance.

05/

Lifting and lowering of special effect devices:
In some special effect performances, such as smoke machines, water spray devices, etc., stage hoists and winches can control the lifting and lowering of these devices to create special visual and auditory effects.

06/

Installation and disassembly of large stage devices:
For complex devices that need to be installed and disassembled on the stage, such as stage mechanical devices, motion platforms, etc., stage hoists and stage winches can provide the necessary support and power.

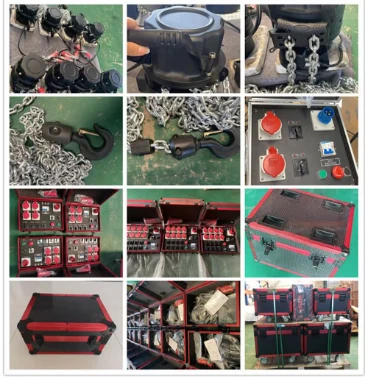

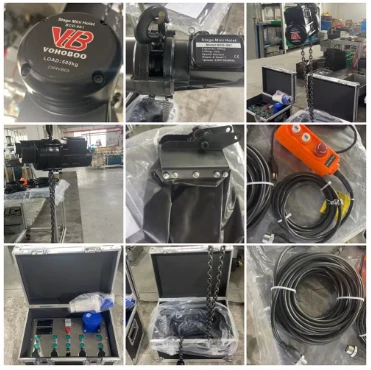

Packaging & Shipping



productcate-371-370productcate-365-379





FAQ



Q: What's the lead time for regular order?

A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.

Q: Can you provide lifting tools?

A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult

Q: Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: How do you ship the goods and how long does it take to arrive?

A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.

Q: What is your terms of packing?

A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q: How to proceed an order for hoist?

A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q: Do you offer guarantee for the products?

A: Yes, we offer 1-3 years warranty to our products.

As one of the leading stage hoist suppliers in China, we warmly welcome you to wholesale discount stage hoist made in China here from our factory. All customized products are with high quality and competitive price.
